ALUZINC STEEL RESERVOIRS

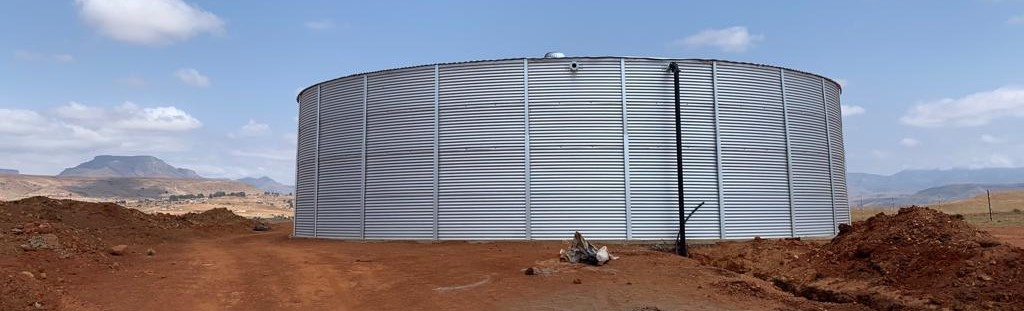

Pressed-steel-tank.jpg 2


Our Aluzinc steel reservoir range are available in 3 types of tanks:
Small volume tank with storage capacity from 15, 000 up to 250,000 liter
Medium sized tank with a capacity from 29,000 up to 250,000 liter without a roof cover.
A large volume of water storage up to 3.3 Ml
Our range has been successfully tried and trusted by mines, municipalities, industrial, fire protection and rural development.

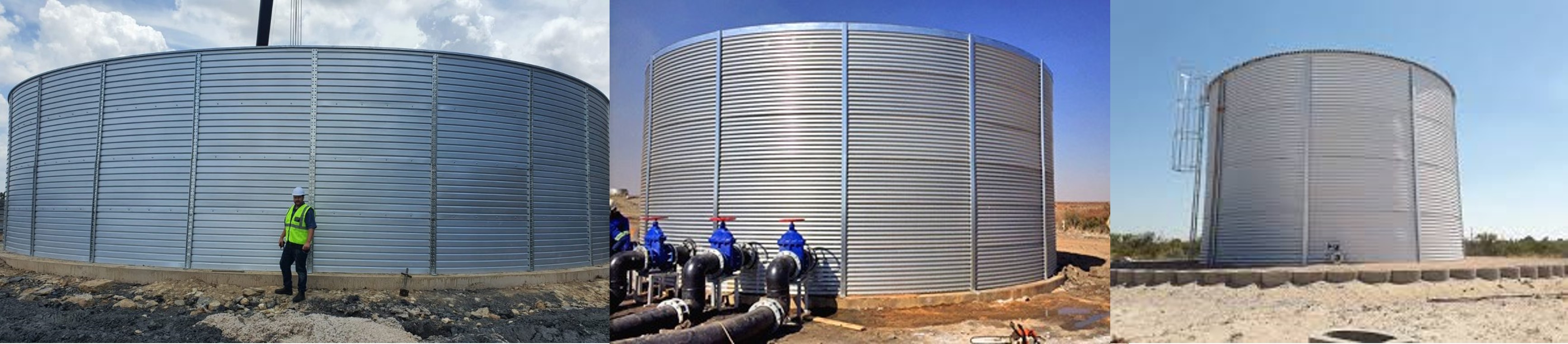

Ecws 3 tanks

Industries Used In

Features Of An Aluzinc Steel Reservoir

  • Wide range of reservoirs sizes and configurations
  • Components manufactured to the highest international specifications
  • Corrosion protection
  • Dome roof
  • Water treatment plants
  • Bulk water storage
  • Potable water storage hydrant
  • Emergency water supply
  • Community water supply schemes
  • Fire-protection

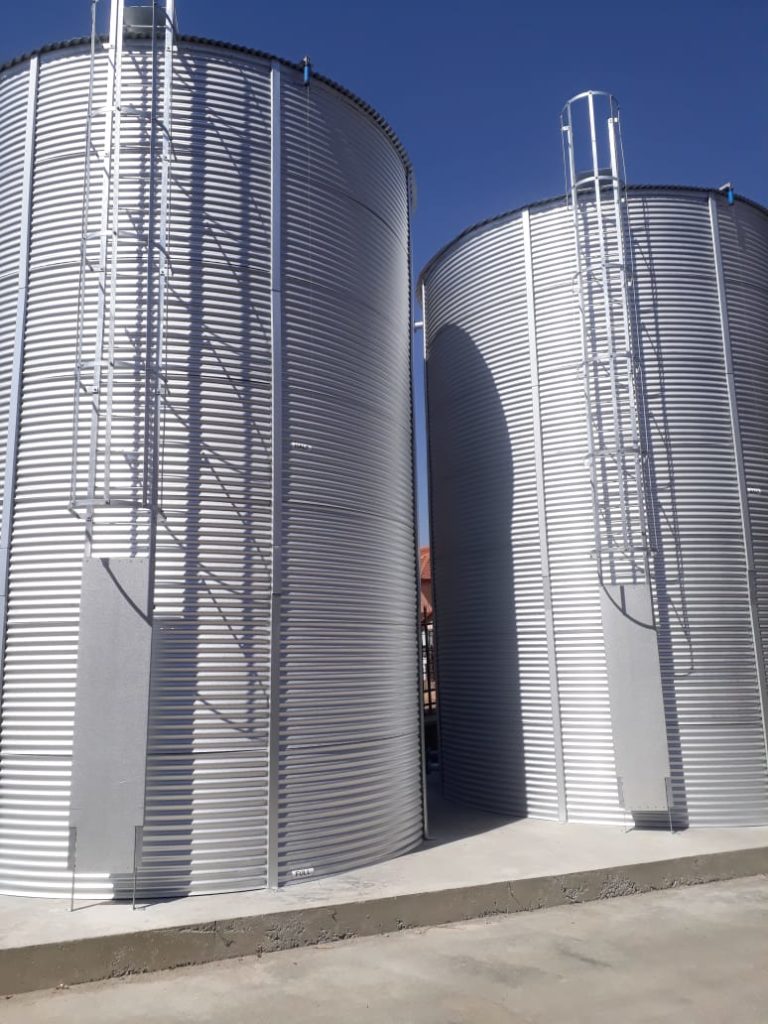

Tall-sectional-panel-tank

Exceptional Quality

The design is in accordance to a recognized code of practice, this enables FTS to design various custom water tanks for numerous projects according to specific design codes and standards.

The Aluzinc Steel round water Tank is designed to stand up to aggressive wind loads in specific regions where hurricanes, high winds and thunderstorms occurs regularly. The tank shell can be adapted to any bespoke needs, we can adapt the wall sheet thickness, roof sheeting and truss design for a more durable structure when nature comes thundering down.

The steel panels of the tank are coated with a Aluzinc layer on both sides. The corrugated steel sheet is continuously hot dipped in a formulation of Aluminium (55%) Zinc (43.5%) and Silicon (1.5%). The aluminium components of the coating provide a tough physical barrier between the extreme atmospheric conditions and the inner core steel. Aluzinc has inherent sacrificial properties and corrodes first before the mild steel corrodes.

A lightweight Aluzinc roof designed to withstand wind speeds of up to 100km an hour can cover tanks. Roofs are fitted with a hatch, internal and external ladder for easy access inside the tank. Tank can also be sealed with felt seal to avoid insects, dust contamination.

All commercial an industrial water storage tanks require the construction of a concrete ring beam footing. It is imperative for the client to ensure that the foundation and civil works for the site are adequate. Ringbeam design is dependent on the tank size and location.


Design Specifications

FTS
Fill in our Contact us for a Quotation
